New Vehicle Information

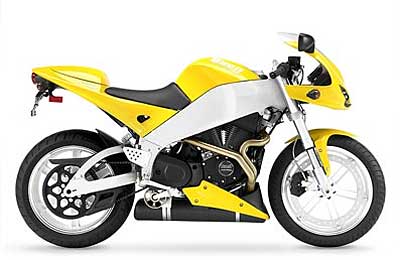

2005 Buellï¿½ Fireboltï¿½ XB9R

Specs, Quotes, Overview

Standard Features

Colors

A flawless chemistry of man and machine, the Fireboltï¿½ isn't a motorcycle you ride. It's a motorcycle you become. Sport-minded performance is achieved through a unique blend of technological brilliance and classic V-twin power. XB9R comes in Sunfire Yellow.

GENERAL INFORMATION
Manufacturer		Buellï¿½

Model Year		2005

Model		Fireboltï¿½ XB9R

M.S.R.P.		$8,695.00*

POWERTRAIN
Engine		Air / oil / fan-cooled, four-stroke, 45ï¿½ V-Twin OHV, two valves per cylinder, self adjusting

Displacement		984 cc (60.0 ci)

Bore x Stroke		3.500 x 3.125 in. (88.90 mm x 79.38 mm)

Compression Ratio		10.0:1

Fuel System		45 mm downdraft DDFI Fuel Injection

Exhaust		Tuned tri-pass resonance chamber

Horsepower		92 hp @ 7500 rpm

Fuel Capacity		3.7 gal. (14.0 l) Reserve: 0.7 gal. (2.6 l)

DRIVETRAIN
Transmission		5-speed, constant mesh

Clutch		Wet, multiple-plate compensated

Lubrication		Dry sump

Final Drive		Constant path; 14mm pitch aramid reinforced Hibrexï¿½ belt w/ Flextenï¿½ Plus technology; 2.407:1 (65/27)

Torque		70 ft. lbs. @ 5500 rpm (95 NM @ 5500 rpm)

DIMENSIONS
Frame		Aluminum frame withUniplanarï¿½ powertrain vibration isolation system - Fuel in Frame

Length		76.2 in. (1935 mm)

Width		28.2 in. (715 mm)

Height		43 in. (1100 mm)

Wheelbase		52 in. (1318 mm)

Seat Height		30.5 in.

Ground Clearance		4.35 in. (110 mm)

Dry Weight		385 lbs. (175 kg)

COLOR OPTIONS
Colors		Sunfire Yellow

Frame & Wheel Colors		Front Wheel: 6-spoke, ZTLï¿½, cast aluminum; 3.5X17 in.; Sky White Rear Wheel: 6-spoke, cast aluminum; 5.5X17 in.; Sky White

BRAKES / WHEELS / TIRES
Suspension		Front: Showaï¿½ inverted fork w/adj. compression damping, rebound damping & spring preload, 4.7 in. travel Rear: Showa coil-over monoshock w/ remote underseat reservoir & adjustable compression damping, rebound damping and spring preload; 5.00 in. travel

Brakes		Front: ZTL type brake, 6-piston, fixed caliper, 375 mm single-sided, inside out, stainless steel, floating rotor Rear: 240 mm stainless steel, single piston, floating caliper, fixed rotor

Tires		Dunlopï¿½ Front: D208FW 120/70 ZR-17 Rear: D208M 180/55 ZR-17
