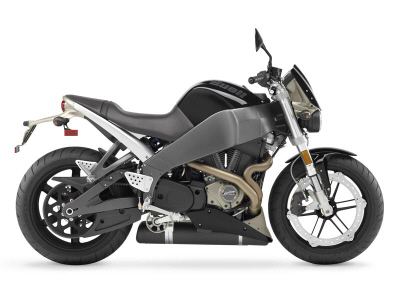

2007 Buell� Lightning� XB12S
|
 |
|
|
|
|
|
The streetfighter is at the core of what Buell is all about. Pure sport-muscle performance. Broad, seamless power delivery. And superior handling. Upon closer inspection, you�ll find nothing but premium components and lightweight materials. The Lightning models also feature neutral ergonomics with wide bars and naturally-positioned footpegs. They provide great leverage, enabling you to ride confidently and aggressively.
An American streetfighter with radical 52 inch wheelbase, 21 degree rake and 3.3 inches of trail. Great agility for any riding situation. 1,203 cc Thunderstorm air/oil/fan-cooled, fuel-injected 45 degree V-twin pulls like a freight train right off idle.
|
|
|
|
| GENERAL INFORMATION | |
| Manufacturer |
|
Buell� |
|
|
| Model Year |
|
2007 |
|
|
| Model |
|
Lightning� XB12S |
|
|
| M.S.R.P. |
|
$10,495.00*
|
|
|
| POWERTRAIN | |
| Engine |
|
Air/oil/fan-cooled, 4-stroke, 45� V-twin, OHV, 2-valves per cylinder, self-adjusting |
|
|
| Displacement |
|
73.4 ci (1,203 cc) |
|
|
| Bore x Stroke |
|
3.5 x 3.812 in. (88.9 x 96.82 mm) |
|
|
| Compression Ratio |
|
10.0:1 |
|
|
| Torque |
|
84 ft. lbs. (113 Nm) @ 6,000 rpm |
|
|
| Fuel System |
|
49 mm down draft DDFI II fuel injection |
|
|
| Exhaust |
|
Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting |
|
|
| Horsepower |
|
103 hp @ 6,800 rpm |
|
|
| DRIVETRAIN | |
| Transmission |
|
5-speed, helical gear |
|
|
| Clutch |
|
Wet, multi-plate, compensated, reduced lever effort |
|
|
| Lubrication |
|
Dry-sump |
|
|
| Final Drive |
|
Constant path, 14 mm pitch aramid-reinforced Hibrex� belt with Flexten� Plus technology, 2.407:1 (65/27) ratio |
|
|
| DIMENSIONS | |
| Frame |
|
Aluminum with Uniplanar� powertrain vibration isolation system, fuel in frame |
|
|
| Length |
|
76.2 in. (1,935 mm) |
|
|
| Width |
|
29.7 in. (755 mm) |
|
|
| Wheelbase |
|
51.8 in. (1,315 mm) |
|
|
| Seat Height |
|
30.1 in. (765 mm) |
|
|
| Ground Clearance |
|
4.35 in. (110 mm) |
|
|
| Dry Weight |
|
395 lbs. (179 kg) |
|
|
| Fuel Capacity |
|
3.2 gal. (14.5 l) with 0.75 gal. (2.8 l) reserve |
|
|
| COLOR OPTIONS | |
| Colors |
|
Midnight Black, Valencia Orange Translucid, Cherry Bomb Translucid |
|
|
| Frame & Wheel Colors |
|
Cherry Bomb Translucent or Translucent Amber |
|
|
| BRAKES / WHEELS / TIRES | |
| Suspension |
|
Front: 43 mm Showa� inverted forks w/ adj. comp. & rebound damp. & spring preload; 4.72 in. (120 mm) travel
Rear: Showa� coil-over monoshock w/ remote, under-seat reservoir & adj. comp. & rebound damp. & spring preload; 5 in. (127 mm) travel |
|
|
| Brakes |
|
Front: ZTL�-type, 6-piston, fixed caliper, 375 mm 1-sided, inside out, stainless steel, floating rotor
Rear: 1-piston, floating caliper, 240 mm stainless steel, fixed rotor |
|
|
| Tires |
|
Type: Pirelli�
Model: Diablo T
Front: 120/70 ZR-17
Rear: 180/55 ZR-17 |
|
|
| | |
| Rake |
|
21� (at steering head) |
|
|
| Trail |
|
3.3 in. (83 mm) |
|
|
|
|
|
Photos may show optional equipment
*Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer vehicle freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected. |
|
|
|
|
